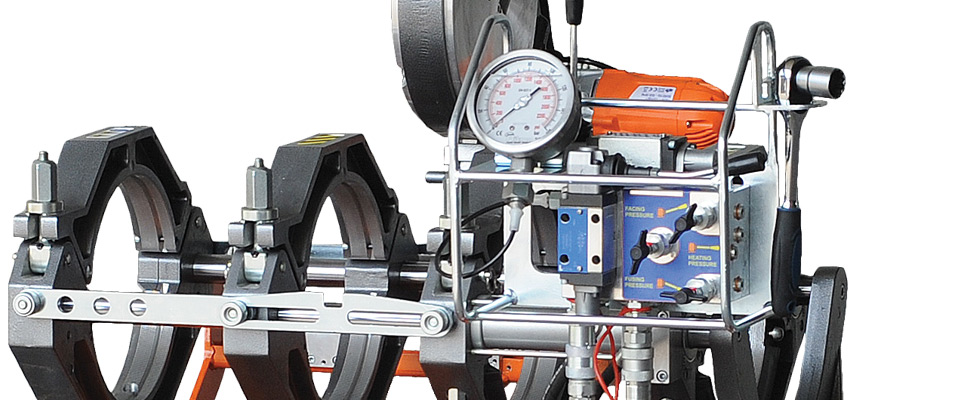

DELTA 250 TRAILER MANUAL: self-aligning hydraulic butt fusion machine, suitable for welding underpressure pipes for water, gas and other fluids up to Ø 250 mm (8" DIPS). Welds according to the International standards ISO 21307 HIGH PRESSURE / ASTM F2620.

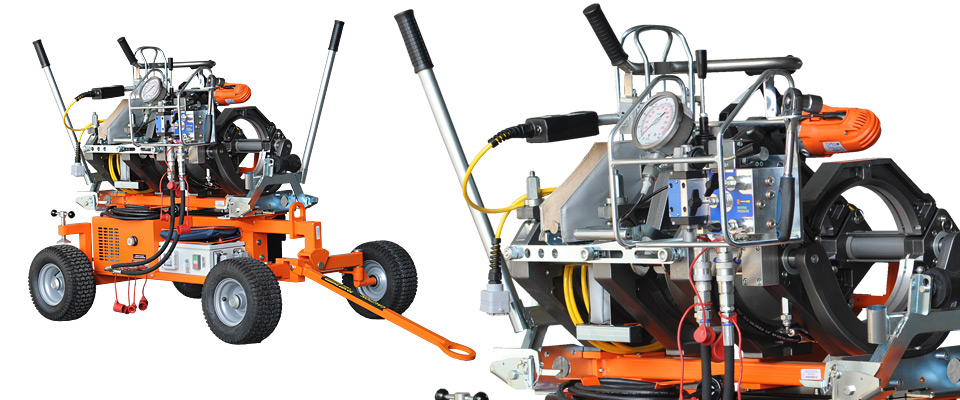

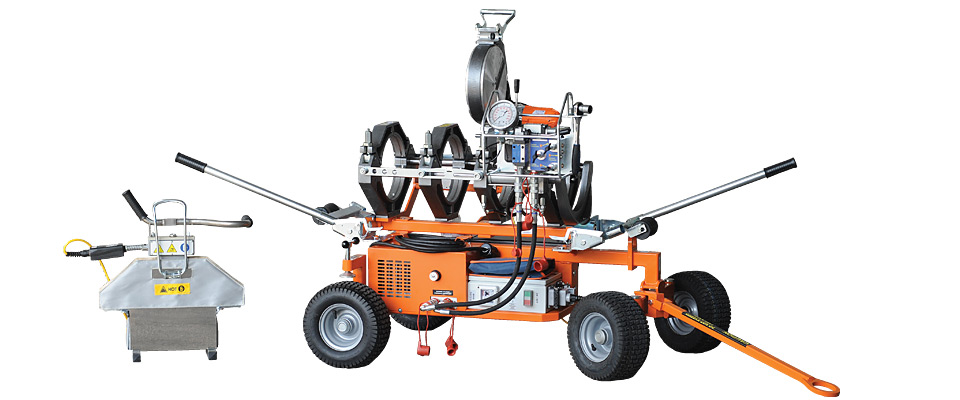

DELTA 250 TRAILER MANUAL is able to weld fittings like elbows, tees, Y-branches and flanges necks. Available in the 110 V and 230 V versions. Includes:  - A trailer-mounted machine body, easily removable from the trolley

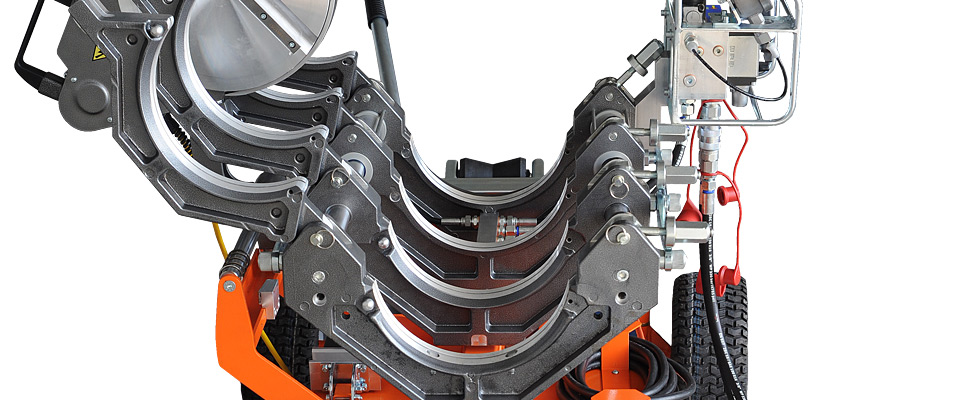

- Fast-locking adapters system SMARTLocK RITMO Patented, thanks to which is possible to change adapters in few seconds
- An on-board electric milling cutter with a safety microswitch
- An extractable heating plate Teflon-coated (PTFE) equipped with an independent thermometer
- Two rollers
- A heating plate support which comes with a high-temperature-proof bag, which also avoid the heating element from being scratched

ON REQUEST (ACCESSORIES)
- Clamps’ inserts from Ø 75 to 225 mm; 2" ÷ 8" IPS; 3" ÷ 8 " DIPS
- Tool to weld flanges’ necks/ Stub-end holder

Technical features:

Materials	HDPE/PP/PB/PVDF
Working range	Ø 75 ÷ 250 mm; 2" IPS ÷ 8" DIPS
Power supply	110 V or 230 s-phase 50/60 Hz
Total absorbed power	4400 W (110 V) 4200 W (230 v)
Working temperature	180° ÷ 260° C (356° ÷ 500° F)
Outside temperature range	-10° ÷ 40° C (14° ÷ 104° F)
Weight	500 lb - 227 Kg
Dimension	43.3" x 52.7" x  51.1" 1100 x 1340 x 1300 mm



;
•
•
•
•
