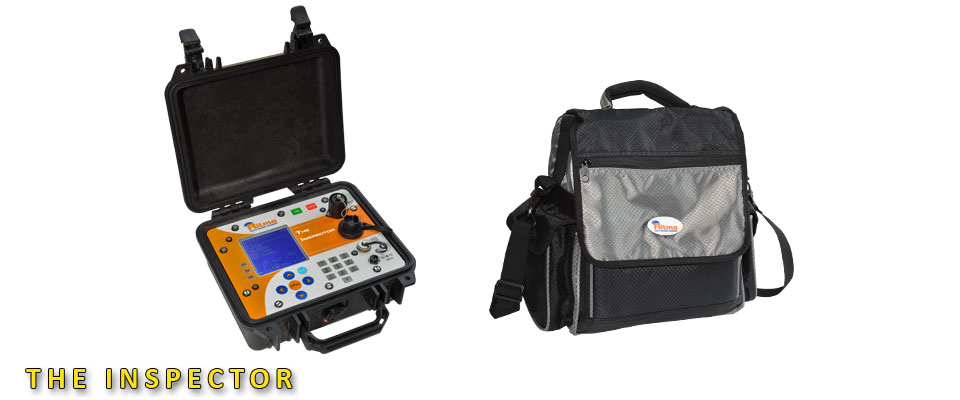

THE INSPECTOR - DATA LOGGING that controls, records and generates a PDF report of the entire welding process. The Inspector is an “open system” that can be used with Ritmo machines or others. The large graphic display allows an easy reading of welding reports.

THE INSPECTOR is installed in a hard case made of PP, with protection degree IP 67. It is sold with a bag that contains the data logging and the battery charger with international adapters.

- Preloaded Major Welding Standard (ISO, DVS, and others)
- Memory of 1000 cycles - USB port for Welding Report in PDF
- Integrated GPS - Firmware upgradable via USB
- Battery operated (24 hr of operational work)
- Battery charger with international adapters
- Built-in plastic case in PP with IP67 protection class
- Transport bag
- Applicable to Ritmo machines and other

Standard composition
- THE INSPECTOR, transport bag, battery, charger and International adapters

On request
- Transducer connection cables; the cable and the transducer may vary according to the welder model (see price list for the correspondent codes).

POWER SUPPLY 24 V DC
Outside Temperature Range -10° C 40° C
Protection Degree IP 67
Dimensions Data Logging 240 x 265 x 110 mm
Weight 2,6 Kg
