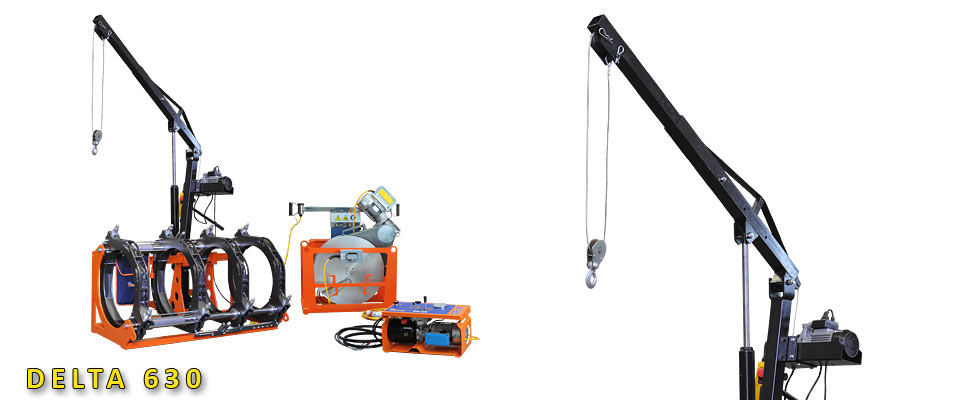

This is a self-aligning machine, suitable for welding pipes for the transport of water, gas and other fluids under pressure, up to Ø 24" IPS (630 mm).

Delta 630 can weld fittings such as elbows, tees, wyes and flange necks. This is possible because the 3rd clamp can be anchored to the 1 st and 2nd (movable) and slide along with the pipe. The fitting must be locked in the 4th clamp. Stub-end with a short neck can be welded with the help of a stub-end holder (on request), applied to the clamps.

- Working range: Ø 10" IPS to 24" IPS (280 - 630 mm)
- Extractable heating plate with separate thermometer
- Milling cutter with safety micro switch
- Thermoregulator for the control of the working temperature


ON REQUEST (ACCESSORIES)

- Machine body trolley
- Tool for flange necks
- Electrical crane
